The A-Body Genesis: Forging the Ultimate Compact Unibody
The Dodge Dart completely redefined the structural parameters of the American compact vehicle. Chrysler introduced the nameplate in 1960 as a downsized full-size model, but the vehicle found its true permanent identity in 1963 when engineers migrated the platform to the robust A-body unibody architecture. This structural pivot provided a highly rigid, lightweight skeletal frame perfectly suited for diverse, high-torque powertrain applications. The A-body utilized a fully welded construction technique directly from the factory, drastically reducing the high-frequency squeaks and chassis flex that plagued early domestic compacts relying on primitive bolt-together frames.
The Leaning Tower of Power: Slant-6 Thermodynamics
Propulsion for the early A-body heavily relied on the legendary Slant-6 engine. Officially designated as the G-engine, this inline-six powerplant is an absolute marvel of thermodynamic durability. Engineers canted the cast-iron cylinder block exactly 30 degrees toward the passenger side. This severe geometric tilt served two critical engineering directives. First, it lowered the overall physical height of the engine, allowing designers to sculpt a dramatically lower, more aerodynamic hood line. Second, the tilted block provided the necessary physical space beneath the hood sheet metal to route incredibly long, equal-length intake manifold runners.
These elongated intake runners optimized the sonic pressure waves of the incoming ambient air, generating a massive surge of low-end torque directly off idle. Featuring a heavy forged steel crankshaft supported by four massive main bearings, the Slant-6 routinely survived hundreds of thousands of miles of severe mechanical abuse without suffering catastrophic internal failure, solidifying the Dart as an indestructible commuter vehicle.
Shoehorning the V8: The 340 Phenomenon
While the inline-six provided reliable transportation, the true violent nature of the Dart emerged in 1967. Chrysler completely redesigned the front subframe, widening the physical distance between the inner fender shock towers specifically to accommodate the immense girth of their LA-series small-block V8 engines. The absolute pinnacle of this specific era was the integration of the 340 cubic-inch V8.
This specialized engine block featured a high-lift, high-duration camshaft, a forged steel crank, and highly aggressive "X" cylinder heads. These specialized iron heads housed massive 2.02-inch intake valves designed to ingest staggering volumes of oxygen at high engine speeds. Dropping this high-revving V8 into a lightweight compact chassis created a terrifyingly fast machine that routinely humiliated much larger, heavier mid-size muscle cars on the street.
1968 Dodge Dart GTS 340 Specifications
- Engine Architecture
- 340 cu in (5571 cm3) LA-Series V8, Cast-Iron Block and Heads
- Induction System
- Single Carter AVS Four-Barrel Carburetor
- Peak Horsepower
- 275 hp @ 5,000 RPM
- Peak Torque
- 340 lb-ft @ 3,200 RPM
- Transmission
- TorqueFlite 3-Speed Automatic or A833 4-Speed Manual
Drag Strip Terror: The LO23 Super Stock HEMI
The absolute zenith of A-body factory performance arrived in 1968 with the covert LO23 Super Stock Dart program. Dodge collaborated directly with Hurst Performance to build a dedicated, street-illegal drag strip weapon. Engineers quite literally sledgehammered the inner shock towers to force the massive 426 cubic-inch Elephant HEMI engine into the compact engine bay. To offset the immense weight of the iron block, they stripped the vehicle of all sound deadening, installed lightweight fiberglass front fenders and a massive scooped hood, and chemically milled the steel doors in a specialized acid bath to physically thin the metal and shed unnecessary ounces.
The LO23 HEMI Dart was a purpose-built mechanical predator. Utilizing a heavy-duty Dana 60 rear axle and a heavily modified transmission, these machines ripped through the quarter-mile in the 10-second range straight off the assembly line, utterly dominating the NHRA Super Stock classes and permanently embedding the Dart in American racing lore.
Suspension Dynamics: Torsion Bars and Asymmetrical Springs
Managing the violent kinetic energy of the V8 models required a brilliant suspension architecture. Rather than relying on traditional, bulky front coil springs, the A-body Dart utilized Chrysler's signature torsion-bar front suspension. These heavy-duty steel bars ran longitudinally along the chassis. As the front wheels encountered a physical bump, the suspension compressed by twisting the steel bar. This torsion design provided exceptional packaging efficiency and allowed owners to actively adjust the front ride height with a simple wrench turn.
The rear utilized asymmetrical leaf springs. By mounting the forward segment of the leaf spring shorter and significantly stiffer than the rear segment, engineers effectively counteracted the rotational twisting forces of the rear axle housing. This specific geometric design completely eradicated violent wheel hop during aggressive straight-line drag launches, keeping the rear tires firmly planted against the asphalt.
The PF Platform Resurrection: Italian DNA Meets Detroit

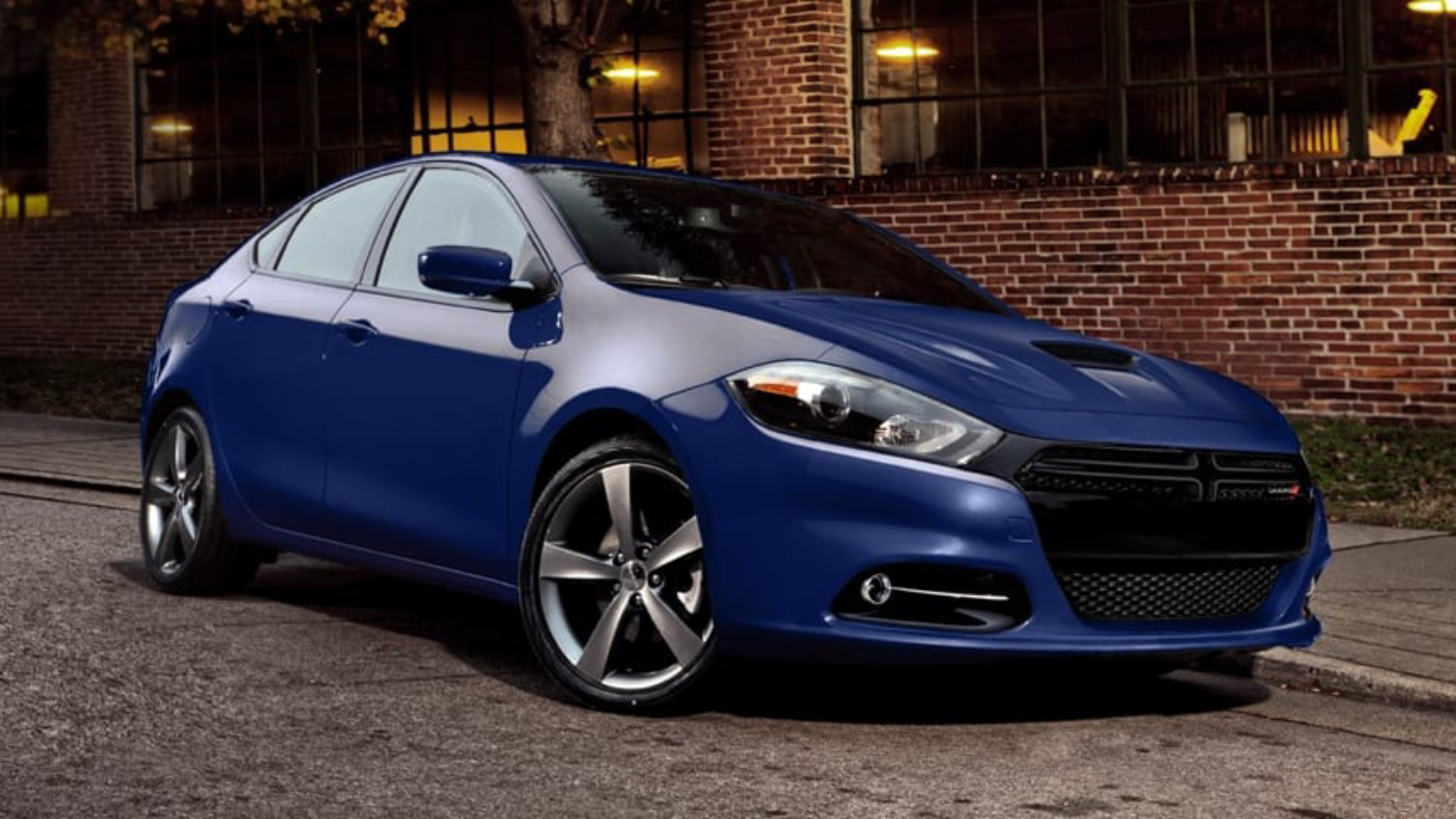

Following a 36-year production hiatus resulting from the 1970s fuel crises and shifting market demands, Dodge resurrected the Dart nameplate in 2013. The new PF generation represented a radical corporate synthesis following the Fiat-Chrysler merger. The vehicle utilized the Compact U.S. Wide (CUSW) platform. This unibody chassis was a heavily modified, physically widened derivative of the Alfa Romeo Giulietta architecture.
Engineers extended the wheelbase and widened the track width to satisfy American interior volumetric expectations while retaining the aggressive, razor-sharp steering geometry inherent to Italian sports sedans. The unibody shell utilized an incredibly high 68 percent ratio of high-strength steel. This strategic metallurgical application maximized torsional rigidity, providing a rock-solid foundation for the sport-tuned suspension while creating an impenetrable safety cage for the occupants during severe collisions.
MultiAir Technology and Electro-Hydraulic Actuation
The technological centerpiece of the modern Dart lineup was the 1.4-liter turbocharged inline-four engine, imported directly from Fiat Powertrain Technologies. This diminutive aluminum block featured the revolutionary MultiAir variable valve actuation system. Engineers entirely discarded the traditional mechanical intake camshaft.
Instead, they installed an electro-hydraulic system where a dedicated ECU precisely regulates engine oil pressure delivered via solenoids to the intake valves. This architecture allows infinite, per-cylinder control over valve lift and timing on every single combustion stroke. By actively manipulating the intake valves, the MultiAir system completely eliminated the need for a physical throttle butterfly valve in the intake tract. Removing this restriction eradicated parasitic pumping losses and maximized volumetric efficiency, allowing the small-displacement engine to produce exceptional power while minimizing tailpipe CO2 emissions.
2013 Dodge Dart Aero 1.4T Specifications
- Engine Architecture
- 1.4L (1368 cm3) Turbocharged Inline-4, Cast-Iron Block, Aluminum Head
- Valvetrain
- Single Overhead Cam with MultiAir Electro-Hydraulic Intake Actuation
- Peak Horsepower
- 160 hp @ 5,500 RPM
- Peak Torque
- 184 lb-ft @ 2,500 RPM
- Drivetrain
- Front-Wheel Drive (FWD)
Dual Dry Clutch Transmissions (DDCT) and Kinetic Management
Routing turbocharged torque to the front wheels required a highly specialized gearbox. The Dart Aero utilized a Fiat C635 Dual Dry Clutch Transmission (DDCT). This unit housed two completely independent clutch assemblies within a single transmission casing. One clutch manipulated the odd gears, while the second managed the even gears.
As the vehicle accelerated in first gear, the internal computer pre-selected second gear on the secondary shaft. When the precise shift point arrived, the transmission simply disengaged one clutch and simultaneously engaged the other, executing a seamless, lightning-fast gear change with absolutely zero interruption in forward torque delivery. For buyers preferring larger displacement, Dodge introduced the naturally aspirated 2.4-liter Tigershark four-cylinder, integrating the second generation of MultiAir technology to produce a highly responsive 184 horsepower.
Aerodynamic Sculpting and NVH Isolation
Slicing through the atmosphere at highway speeds dictates fuel efficiency in the modern era. The exterior of the PF Dart underwent thousands of hours of computational fluid dynamics testing. Engineers sealed the front undercarriage entirely to prevent turbulent air from churning beneath the hot engine bay. The most advanced aerodynamic feature was the integration of active grille shutters.
During cold engine starts or low-speed urban driving, the computer opens the shutters to pull cold ambient air across the radiator. Once the vehicle achieves highway velocity and cooling demands naturally decrease, an electric motor physically closes the heavy plastic louvers. This forces the oncoming air smoothly over the hood, drastically dropping the overall drag coefficient to an incredibly slippery 0.28. To isolate the cabin from the chaos of the road, engineers deployed triple door seals, acoustic laminated windshield glass, and highly specialized liquid-filled engine mounts that physically absorbed the high-frequency vibrations inherent to four-cylinder engines.
Digital Ecosystem and Structural Armor
Inside the cabin, the modern Dart actively rejected the sterile, utilitarian designs of traditional compact sedans. Designers crafted a driver-centric cockpit defined by the Floating Island Bezel. This continuous, illuminated instrument panel housed a massive 8.4-inch Uconnect digital touchscreen, operating on an advanced, high-speed CAN bus network.
A highly customizable 7-inch Thin Film Transistor (TFT) display replaced analog gauges in the primary instrument cluster, allowing the driver to monitor specific telemetry, including digital speedometer readouts and active tire pressure monitoring. Shedding kinetic energy relied on massive, heavily ventilated front rotors clamped by single-piston sliding calipers, networked with an advanced ABS module. This system featured electronic brake-force distribution and active brake assist, physically pre-charging the hydraulic lines if the computer detected an abrupt release of the accelerator pedal. The Dodge Dart successfully fused aggressive Italian chassis dynamics with American interior technology, creating a highly capable, structurally advanced machine.
