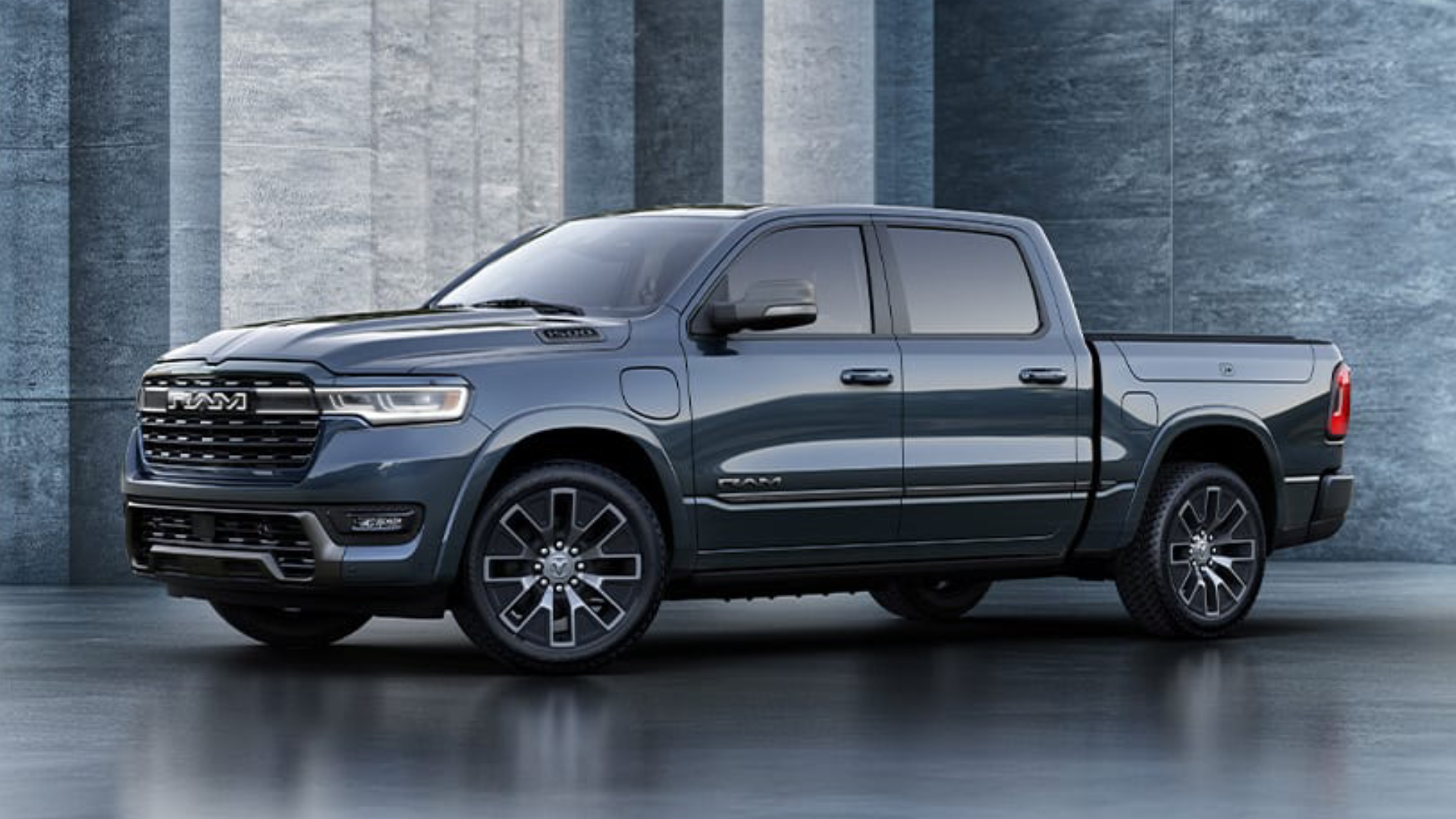

A Calculated Strike in the Electric Truck Wars
Ram executed a masterclass in tactical patience. Competitors rushed their battery-powered pickups to market, instantly exposing a glaring vulnerability: massive range degradation when towing heavy trailers. Ram engineers studied these early failures, returning to the drawing board to construct a machine specifically designed to eradicate those compromises. The Ram 1500 REV operates as a zero-emission heavy-duty workhorse, delivering earth-rotating torque and an unprecedented structural foundation that leaves early-adopter electric trucks looking like mere prototypes. It forces every rival OEM to reconsider their approach to battery-powered utility, completely eliminating tailpipe CO2 emissions without sacrificing the brute force required for a grueling day on the job site.
The Foundation: STLA Frame Architecture
You cannot simply stuff a massive battery pack into a legacy combustion chassis and expect structural integrity. The Ram 1500 REV introduces the entirely new STLA Frame platform. This purpose-built architecture relies on advanced high-strength steel to form a rigid, widened ladder frame. It cradles the colossal battery packs centrally between the axles, dramatically lowering the center of gravity to the pavement. This specific geometric orientation drastically reduces body roll during aggressive cornering, transforming a 6,000-plus pound truck into a surprisingly nimble, dynamically balanced machine.
The decision to utilize a wider section frame allowed engineers to push the battery modules outward, expanding raw energy capacity without sacrificing interior cabin volume or negatively altering the truck's overall height profile.
The frame itself acts as a fortified vault. Heavy-duty crossmembers protect the vital power storage components from jagged rocks and off-road debris. This rigid skeleton allows the suspension system to focus entirely on dampening impacts rather than compensating for chassis flex under heavy payloads.
Eradicating Range Anxiety: Dual Battery Configurations
Energy storage defines the true viability of any EV tasked with performing actual work. Ram addresses range anxiety by offering two distinct, extreme-density lithium-ion configurations. The standard-range pack boasts a 168-kilowatt-hour capacity, targeting an impressive 350 miles of unladen driving. Buyers demanding absolute supremacy and long-haul capability can specify the optional 229-kilowatt-hour long-range pack. This gargantuan energy reserve pushes the boundaries of modern battery chemistry, aiming for an unmatched 500 miles of driving range, ensuring you spend time driving rather than desperately searching for a plug.
Thermal management dictates absolute efficiency and longevity. The Ram 1500 REV employs a highly sophisticated active liquid cooling and heating loop. This system continuously monitors individual cell temperatures across the entire pack. By actively heating or cooling the modules, the system ensures optimal energy discharge and rapid recharge rates regardless of the freezing temperatures or searing heat outside the cabin. This precise thermal regulation dramatically extends the overall lifespan of the battery architecture, protecting the owner's investment for hundreds of thousands of miles.
800-Volt Architecture and Rapid Replenishment
High-capacity batteries demand high-velocity charging protocols. The REV utilizes an advanced 800-volt DC fast-charging architecture. Pull up to a 350-kW commercial charging pedestal, and the onboard inverter forces electrons into the cells with staggering speed. The system recovers up to 110 miles of range in a mere 10 minutes. This technological leap essentially eliminates the long, agonizing dwell times previously associated with cross-country electric travel, allowing contractors and families to get back on the highway immediately.
Powertrain Dynamics: The Dual EDM Setup
Motivation arrives via two massive Electric Drive Modules (EDMs). Engineers brilliantly packaged the electric motor, gearbox, and inverter into a single, compact, highly efficient housing positioned directly on the front and rear axles. The front EDM incorporates a sophisticated automatic wheel-end disconnect mechanism. When cruising down the interstate under light load, the front wheels mechanically decouple from the motor entirely. This eliminates parasitic drag, boosting highway range.
The rear EDM features a heavy-duty electronic locking differential. When navigating deep mud, snow, or crawling over jagged rock formations, the driver can lock the rear axle, forcing both wheels to spin simultaneously for instantaneous, brutal traction. Combined, these front and rear modules generate an explosive 654 horsepower and 620 lb-ft of instant torque. Pin the throttle to the floorboard, and the REV surges from a standstill to 60 mph in exactly 4.4 seconds. Experience the surreal, silent thrust that pushes you violently into the seatback, free from the mechanical hesitation and power interruption of traditional transmission downshifts.
Uncompromised Capability: Towing and Payload Metrics
Electric trucks frequently boast high horsepower figures but fail catastrophically when tasked with actual truck duties, experiencing massive suspension sag or dangerous instability. The REV destroys this stereotype through pure engineering muscle. The combination of the rigid STLA frame and the immense, flat torque curve culminates in class-shattering hauling capabilities.
- Maximum Towing Capacity
- An astonishing 14,000 pounds when properly equipped, outclassing numerous heavy-duty internal combustion rivals.
- Maximum Payload Capacity
- Up to 2,700 pounds accommodated directly in the reinforced bed, supported by the auto-leveling air suspension geometry.
- Water Fording Capability
- Fully sealed electrical components and a protected battery vault allow the truck to safely navigate up to 24 inches of standing water.
The Frunk and Bi-Directional Power Dominance
Removing the massive internal combustion engine freed up unprecedented real estate at the front of the vehicle. The REV features a cavernous, powered frunk (front trunk) offering a massive 15 cubic feet of secure, weather-proof storage. This space easily swallows multiple golf bags, power tools, or muddy gear you want kept out of the pristine cabin.
The REV offers far more than just cargo space; it acts as a highly mobile, rolling power plant. Utilizing advanced bi-directional charging capabilities, the truck becomes a critical tool for survival and utility. It can push power back into the local grid during peak hours, jump-charge another stranded EV on the side of the highway, or fully power a remote construction site. The onboard power panel provides a massive 7.2 kW output directly from the bed, with an additional 3.6 kW output available in the frunk. During a severe weather blackout, the Ram 1500 REV holds enough energy to power a standard American home for several days, acting as a silent, exhaust-free emergency generator.
Aerodynamic Mastery and Active Air Suspension
Wind resistance acts as the ultimate enemy of battery range. To combat invisible drag, the REV's exterior design underwent thousands of hours of intense wind tunnel testing. Designers and engineers optimized every square inch, striving to reduce the aerodynamic drag footprint by every possible cm2. The sweeping hood, flush-mounted door handles, and aggressive active aero systems actively slice through the air. Specialized shutters located behind the massive front grille close automatically at highway speeds, diverting turbulent air cleanly over the cabin rather than trapping it inside the front bay.
This aerodynamic profile receives a massive boost from the Active-Level four-corner air suspension system. This sophisticated, closed-loop setup replaces traditional mechanical coil springs with heavy-duty pneumatic air bladders. At highway cruising speeds, the truck automatically drops into Aero Mode, lowering the entire chassis to cheat the wind and drastically improve energy consumption. When venturing off-road, the driver can manually raise the suspension, ensuring maximum ground clearance to clear large boulders while completely isolating the cabin from aggressive, high-speed impacts.
A Vault-Like, High-Tech Command Center
The interior of the Ram 1500 REV entirely blurs the line between a rugged utility vehicle and a flagship European luxury sedan. By eliminating the mechanical noise, exhaust drone, and engine vibration of a traditional V8, engineers created a completely silent, vault-like environment. High-tier trims, such as the Tungsten, feature premium, heavily grained quilted leather seating surfaces, intricate stitching, real metal accents, and genuine carbon fiber trim pieces.
The dashboard acts as a digital command center, dominated by a trifecta of ultra-high-definition displays. A massive 14.5-inch vertically oriented Uconnect 5 touchscreen handles complex navigation routing, climate controls, and trailer telemetry, operating with instantaneous, smartphone-like fluidity. The driver relies on a crisp 12.3-inch digital gauge cluster that projects vital data, remaining range, and advanced driver assistance alerts directly into their line of sight. Ram also equips the REV with a segment-exclusive 10.25-inch passenger screen. This display allows the co-pilot to manage media, input precise navigation coordinates, or view exterior camera feeds without ever distracting the primary operator.
Audiophiles will appreciate the extreme dedication to sound quality. The available Klipsch Reference Premiere audio system pushes pristine, high-fidelity sound through 23 custom-tuned speakers, including a high-performance subwoofer. It delivers an immersive, concert-hall experience, packaging maximum energy into every available cm3 of space and completely drowning out the serene silence of the electric powertrain. The Ram 1500 REV is not merely an electric truck; it is a masterclass in American automotive engineering, flawlessly blending silent, brutal power with unparalleled luxury and capability.
