Crossing the Threshold: The Class 4 Commercial Standard

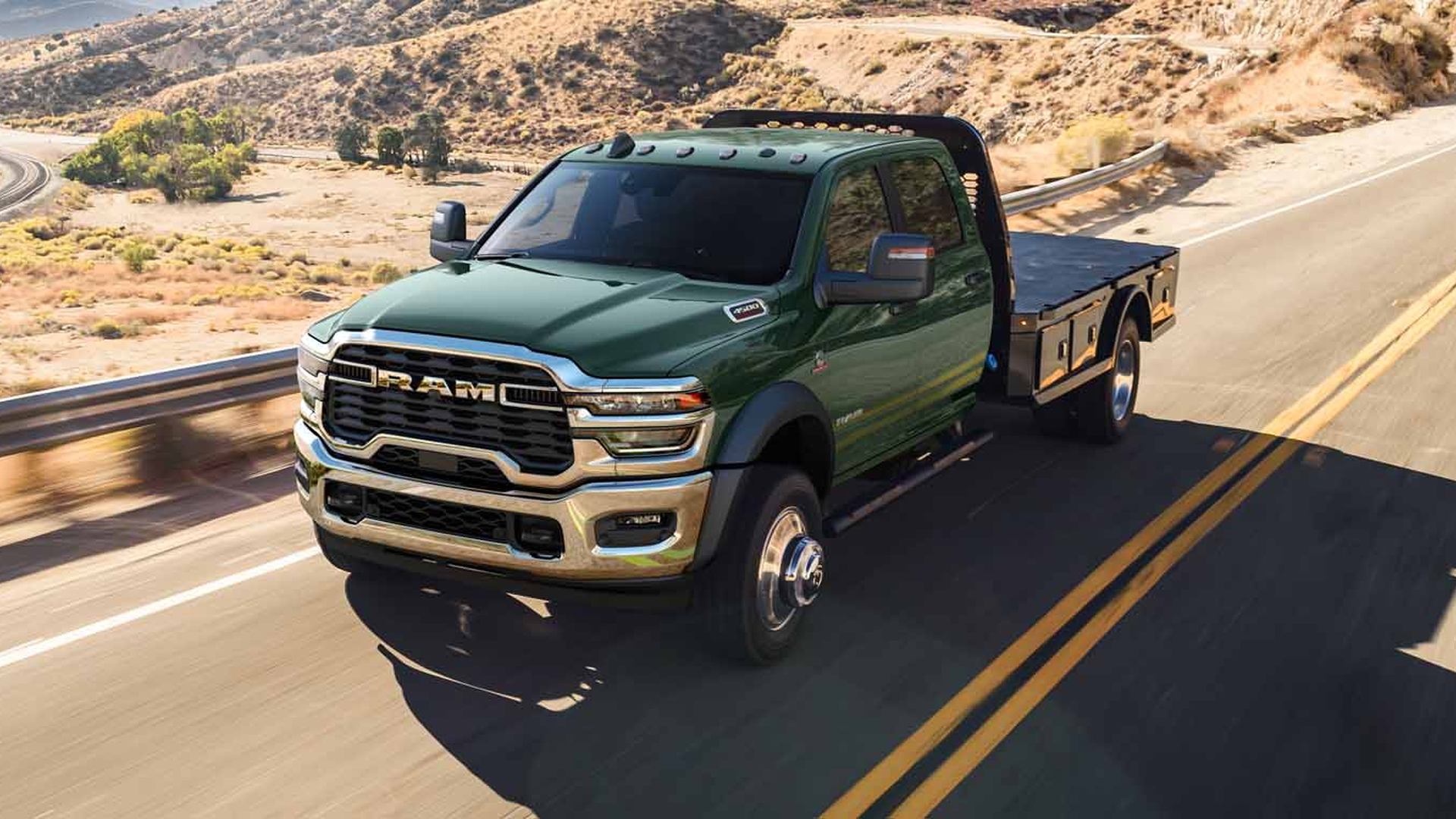

The Class 4 commercial truck segment operates strictly on mathematics and structural survival. Vehicles residing in this category carry a GVWR between 14,001 and 16,000 pounds, serving as the critical bridge between heavy-duty consumer pickups and massive medium-duty box trucks. The Ram 4500 Chassis Cab exists precisely in this demanding space. It strips away the superficial marketing metrics of the consumer truck world, replacing them with raw structural yield strengths, massive axle capacities, and specialized electronic architectures. Upfitters rely on the Ram 4500 to shoulder severe vocational bodies-heavy wreckers, heavily armored swat vehicles, and massive aerial bucket lifts-that would instantly crush a standard one-ton truck frame.
The Genesis of a Medium-Duty Contender
Prior to 2008, operators requiring Ram power in a commercial application were forced to stretch the limits of the 3500 platform. Recognizing the massive gap in their lineup, Dodge engineering launched a dedicated medium-duty assault.
The introduction of the 4500 and 5500 Chassis Cabs for the 2008 model year marked a pivotal shift for the brand, acknowledging that serious industrial operators required a true medium-duty architecture built from the ground up, rather than a modified consumer pickup.
This dedicated platform utilized massive Dana axles, commercial-grade braking systems, and reinforced steel frames that immediately put established OEM competitors on notice. Through continuous generational refinement, Ram transformed this chassis into the most highly adaptable vocational foundation on the American market.
Unyielding Architecture: The 50,000 PSI Flat Frame
You cannot mount a 14,000-pound articulating crane to a frame designed for recreational towing. The Ram 4500 relies on an unyielding steel skeleton featuring a 50,000 psi yield strength. To accommodate the vast aftermarket upfit industry, engineers designed the rear frame section with a perfectly flat-topped profile. Zero suspension brackets, exhaust hangers, or electrical harnesses protrude above the top horizontal plane of the frame rails. This pristine steel surface allows body builders to mount heavy vocational equipment absolutely flush against the chassis, ensuring perfect weight distribution and maintaining a critically low center of gravity to prevent rollovers.
The rear frame rails strictly adhere to the commercial 34-inch width standard, guaranteeing universal compatibility with service bodies manufactured across North America. Instead of the fully boxed frame rails found under consumer trucks, the 4500 utilizes a heavy-duty C-channel design from the cab back. This specific geometry provides crucial flexibility, allowing the chassis to twist slightly under extreme off-camber loads without fracturing, while allowing upfitters to drill and bolt heavy equipment directly to the steel without trapping corrosive moisture inside a sealed metal box.
The 6.7L Cummins: Calibrated for Continuous Abuse
Vocational vehicles require thermal endurance over peak acceleration. A bucket truck might sit entirely stationary for twelve hours in the blistering desert heat, running continuously to spin a high-pressure hydraulic pump. To survive this brutal duty cycle, the 6.7-liter Cummins turbodiesel inline-six receives a highly specialized commercial calibration. Displacing precisely 6,690 cm3, this cast-iron block generates 360 horsepower and 800 lb-ft of torque.
Engineers intentionally restrict the peak output compared to consumer models. This precise detuning drastically reduces internal cylinder pressures and peak exhaust gas temperatures. It immunizes the block against thermal fatigue during endless stationary idling and massive, low-speed heavy hauling. A high-pressure common-rail fuel injection system blasts diesel directly into the combustion chambers, ensuring maximum volumetric efficiency and actively suppressing particulate CO2 emissions to comply with stringent federal environmental standards.
The 6.4L Hemi V8: Maximizing Physical Payload
While diesel traditionally dominates the Class 4 space, many municipal fleets and landscapers demand maximum physical payload capacity over pure towing force. The heavy-duty 6.4-liter Hemi V8 answers this specific requirement perfectly. This naturally aspirated OHV engine delivers a robust 410 horsepower and 429 lb-ft of torque. By selecting the gas engine, fleet operators completely avoid the massive weight penalty of the cast-iron diesel block and its complex, weighty exhaust aftertreatment systems. This massive reduction in curb weight transfers directly to the chassis, legally allowing the truck to carry thousands of additional pounds in its service body. The Hemi features advanced Fuel Saver Technology, instantly deactivating four cylinders under light throttle loads to drastically reduce urban fuel consumption.
Harnessing Kinetic Force: The Aisin AS69RC and PTO Integration
A true commercial chassis must actively power the industrial machinery bolted to its frame. The Ram 4500 offers highly sophisticated Power Take-Off (PTO) integration. Paired exclusively with the heavy-duty Aisin AS69RC six-speed automatic transmission, the system provides dual-sided PTO access. Upfitters can seamlessly bolt massive hydraulic pumps, air compressors, or electrical generators directly to the left or right side of the transmission housing, driving external equipment directly from the engine's rotational force.
The Aisin gearbox represents a masterclass in kinetic management. It features a massive, commercially sized torque converter and heavily reinforced planetary gear sets engineered specifically to withstand the violent shock loads of sudden PTO engagement. A specialized transmission control module locks the torque converter early in the rev range, drastically reducing fluid temperatures during severe, low-speed hauling operations.
The Electronic Gateway: VSIM Architecture
Splicing raw aftermarket wires directly into a modern CAN bus architecture invites catastrophic software failures. Ram solved this industrial hurdle by engineering the Vehicle System Interface Module (VSIM). This highly secure, firewall-protected module acts as the dedicated electronic translator between the truck's main computer network and the aftermarket vocational equipment.
The VSIM provides over 70 specific digital inputs and outputs. Upfitters easily program the module to automatically trigger high-idle engine speeds the exact second a hydraulic crane is engaged. They can electronically restrict the transmission from shifting out of Park while stabilizing outriggers are deployed, or automatically activate emergency roof light bars when the vehicle shifts into reverse. An auxiliary switch bank seamlessly integrated into the center dashboard provides the operator with six heavy-duty, programmable toggle switches, keeping the cabin entirely free of dangerous aftermarket wiring.
Industrial Thermal Capacity and Fluid Management
Cooling a rig operating consistently near its 16,000-pound maximum weight requires massive thermal extraction. The 4500 features a massive frontal grille opening specifically designed to funnel turbulent air directly into a heavy-duty cooling module. This stack includes an oversized primary radiator, a high-capacity charge-air cooler for the turbocharger, and a dedicated transmission fluid cooler. Dual heavy-duty alternators generate up to 440 amps of constant electrical current, effortlessly powering onboard medical inverters and extreme auxiliary LED lighting arrays without draining the primary battery banks.
Operational range dictates fleet efficiency. The chassis accommodates a massive 52-gallon steel fuel tank mounted securely between the rear frame rails, safely positioned behind the heavy-duty rear axle. Fleet buyers can option an additional 22-gallon mid-ship tank, bringing the total onboard diesel capacity to an incredible 74 gallons. This eliminates the need for aftermarket bed-mounted transfer tanks, preserving highly valuable chassis real estate for actual vocational tools.
Axle Geometry and Severe Braking Force
The physical connection to the pavement determines a truck's absolute hauling threshold. The Ram 4500 Chassis Cab utilizes a massive solid front axle engineered specifically to support heavy steel snowplows and massive brush guards without suffering rapid alignment degradation. Out back, a commercial-grade dual-rear-wheel axle distributes extreme vertical loads across four independent tires. This widened footprint provides critical lateral stability for high-center-of-gravity upfits like ambulance boxes or cherry pickers, fiercely resisting the urge to roll during emergency evasive maneuvers.
Stopping this massive kinetic mass requires severe thermal capacity. Massive 15-inch vented brake rotors absorb and dissipate extreme heat rapidly. Drivers towing heavy equipment trailers rely heavily on the integrated smart diesel exhaust brake. By utilizing the variable geometry turbocharger to artificially restrict exhaust flow, the engine creates massive internal backpressure. This physically slows the entire rig on steep, mountainous downgrades without the driver ever needing to touch the physical brake pedal, saving the friction material from catastrophic vaporization.
Ergonomics for the 12-Hour Shift
The operator's cabin scales precisely to the demands of the fleet. The base Tradesman trim operates as an unkillable, entirely utilitarian workspace featuring heavy-duty vinyl flooring and high-abrasion seating fabrics designed to withstand thick leather work belts. Conversely, fleet owners managing long-haul hotshot routes can specify the Laramie or Limited trims. These upper-tier configurations introduce acoustic laminated glass, deeply bolstered leather seating with integrated heating, and massive 12-inch Uconnect touchscreen interfaces. The advanced infotainment system features dedicated commercial routing software that actively avoids low overpasses and weight-restricted bridges based on the specific dimensions of the upfitted vehicle.
Technical Specifications & Class 4 Capability
The engineering depth of the Ram 4500 Chassis Cab is best understood through its raw, unyielding specifications. These metrics represent absolute dominance in the Class 4 sector.
- Standard Powertrain (6.4L Hemi V8)
- A heavy-duty naturally aspirated V8 producing 410 horsepower and 429 lb-ft of torque. Paired with the TorqueFlite 8-speed automatic, it maximizes physical payload capacity.
- Optional Powertrain (6.7L Cummins Turbodiesel)
- A commercially calibrated inline-six generating 360 horsepower and 800 lb-ft of torque. Mated exclusively to the Aisin AS69RC 6-speed automatic to survive endless PTO operation.
- Maximum Cab-to-Axle (CA) Lengths
- Available in 60-inch, 84-inch, 108-inch, and massive 120-inch configurations to perfectly accommodate everything from standard utility boxes to extended flatbed wreckers.
- Maximum Gross Vehicle Weight Rating (GVWR)
- Peaks at a massive 16,000 pounds or 16,500 pounds depending on exact axle configurations, firmly anchoring the chassis in the Class 4 commercial weight segment.
- Maximum Trailering Capacity
- Capable of pulling up to 29,770 pounds when properly configured with the Cummins turbodiesel, a commercial gooseneck hitch setup, and the 4.44 rear axle ratio.
The Definitive Industrial Foundation
The Ram 4500 Chassis Cab bridges the critical gap between light-duty pickups and massive, cumbersome Class 6 box trucks. It delivers relentless, indestructible capability while actively protecting the operator with advanced telematics, sophisticated electrical firewalls, and refined interior ergonomics. From the punishing, dust-choked construction sites of the Midwest to the freezing municipal utility yards of the Northeast, this flat-frame titan remains the definitive, unyielding foundation of heavy American industry.
